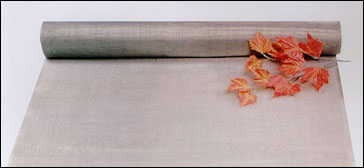

Stainless Steel
Woven Wire Mesh
- Name:stainless steel wire mesh,stainless steel wire cloth
- Material:stainless steel wire 304,316,316L etc
- Function:acid-resistant,alkali-resistant,hot-resistant,pulling
force&wear-resisting
strong.
- Application:as slurry mesh in oil petroleum;as filter screen in
chemical&chemical weapons industry;as acid-washing mesh in electric
plating
- Specifications:3mesh/inch-400mesh/inch
- Width£º1M--1.5M
- length/roll£º30M
- Weaving :plain weaving or twill weaving
|
Stainless Steel Woven Wire Mesh,
Plain Weave
Stainless steel wire mesh
|
mesh/inch |
wire
diameter
mm |
aperture
mm |
|
mesh/inch |
wire
diameter
mm |
aperture
mm |
2mesh |
1.80 |
10.90 |
60mesh |
0.15 |
0.273 |
3mesh |
1.60 |
6.866 |
70mesh |
0.14 |
0.223 |
4mesh |
1.20 |
5.15 |
80mesh |
0.12 |
0.198 |
5mesh |
0.91 |
4.17 |
90mesh |
0.11 |
0.172 |
6mesh |
0.80 |
3.433 |
100mesh |
0.10 |
0.154 |
8mesh |
0.60 |
2.575 |
120mesh |
0.08 |
0.132 |
10mesh |
0.55 |
1.990 |
140mesh |
0.07 |
0.111 |
12mesh |
0.50 |
1.616 |
150mesh |
0.065 |
0.104 |
14mesh |
0.45 |
1.362 |
160mesh |
0.065 |
0.094 |
16mesh |
0.40 |
1.188 |
180mesh |
0.053 |
0.088 |
18mesh |
0.35 |
1.060 |
200mesh |
0.053 |
0.074 |
20mesh |
0.30 |
0.970 |
250mesh |
0.04 |
0.061 |
26mesh |
0.28 |
0.696 |
300mesh |
0.035 |
0.049 |
30mesh |
0.25 |
0.596 |
325mesh |
0.03 |
0.048 |
40mesh |
0.21 |
0.425 |
350mesh |
0.03 |
0.042 |
50mesh |
0.19 |
0.318 |
400mesh |
0.25 |
0.0385 |
Electric
Welding Net: 0.6m-1.5m |
Stainless Steel Wire Cloth, Dutch
Weave
gauge |
wire
quantity
(C/254mm) |
wire
diameter(mm) |
weaving
method |
weingts
(kg/m2) |
|
gauge |
wire
quantity
(C/254mm) |
wire
diameter(mm) |
weaving
method |
weingts
(kg/m2) |
warp
wire
|
weft
wire |
warp
wire |
weft
wire |
warp
wire |
weft
wire |
warp
wire |
weft
wire |
x320 |
81.3 |
780 |
0.100 |
0.071 |
twill |
1.17 |
p28 |
7.1 |
40 |
0.710 |
0.630 |
plain |
5.26 |
x360 |
91.4 |
780 |
1.21 |
p33 |
8.4 |
75 |
0.500 |
0.355 |
2.99 |
x400
I |
101.6 |
900 |
0.063 |
1.13 |
p40 |
10.2 |
75 |
3.11 |
x400
II |
101.6 |
780 |
0.071 |
1.24 |
p45 |
11.4 |
75 |
3.19 |
x500 |
127 |
1100 |
0.071 |
0.050 |
0.85 |
p50 |
12.7 |
75 |
0.450 |
3.11 |
x520 |
132 |
1100 |
0.86 |
p55 |
14 |
75 |
3.18 |
x630
I |
160 |
1500 |
0.063 |
0.036 |
0.67 |
p60 |
15.2 |
100 |
0.400 |
0.280 |
2.57 |
x630
II |
160 |
1400 |
0.040 |
0.72 |
p74 |
18.8 |
110 |
0.355 |
0.250 |
2.34 |
x685 |
174 |
1400 |
0.78 |
p80 |
20.3 |
110 |
2.39 |
x795 |
202 |
1800 |
0.050 |
0.032 |
0.57 |
p90 |
22.9 |
120 |
0.315 |
0.224 |
2.14 |
x850 |
216 |
1900 |
0.045 |
0.030 |
0.52 |
p100 |
25.4 |
140 |
0.280 |
0.200 |
1.90 |
x1000 |
254 |
2000 |
0.040 |
0.028 |
0.50 |
p110 |
27.9 |
150 |
0.180 |
1.82 |
x1125 |
285.8 |
2300 |
0.036 |
0.025 |
0.47 |
p120 |
30.5 |
150 |
0.250 |
1.74 |
x1250 |
317.5 |
2300 |
0.44 |
p140 |
35.6 |
200 |
0.244 |
0.140 |
1.43 |
Note:
Approximate cloth weight per square meter is calculated in accordance
with stainless steel wire cloth. |
p160 |
40.6 |
220 |
0.180 |
0.125 |
1.21 |
p180 |
45.7 |
250 |
0.160 |
0.112 |
1.08 |
p200 |
50.8 |
280 |
0.140 |
0.100 |
0.95 |
p220 |
55.9 |
280 |
0.97 |
p240 |
61 |
300 |
0.090 |
0.93 |
p260 |
66 |
300 |
0.125 |
0.89 |
p280 |
71.1 |
350 |
0.112 |
0.080 |
0.78 |
Stainless Steel Woven Wire Cloth
Mesh x Mesh |
Wire Dia.x Wire Dia. |
Material |
24mesh x 110mesh |
0.35mm wire dia.x 0.25mm
wire dia. |
AISI 304/316 |
30mesh x 150mesh |
0.23mm wire dia.x 0.18mm
wire dia. |
AISI 304/316 |
50mesh x 600mesh |
0.18mm wire dia.x 0.11mm
wire dia. |
AISI 304/316 |
20mesh x 200mesh |
0.75mm wire dia.x0.21mm
wire dia. |
AISI 304/316 |
50mesh x 250mesh |
0.14mm wire dia.x 0.11mm
wire dia. |
AISI 304/316 |
20mesh x 250mesh |
0.25mm wire dia.x 0.20mm
wire dia. |
AISI 304/316 |
30mesh x 360mesh |
0.23mm wire dia. x 0.15mm
wire dia. |
AISI 304/316 |
12mesh x 120mesh |
0.35mm wire dia. x 0.224mm
wire dia. |
AISI 304/316 |
20mesh x 80mesh |
0.45mm wire dia. x 0.35mm
wire dia. |
AISI 304/316 |
80mesh x 700mesh |
0.06mm wire dia. x 0.05mm
wire dia. |
AISI 304/316 |
165mesh x 800mesh |
0.071mm wire dia.x 0.045mm
wire dia. |
AISI 304/316 |
165mesh x 1400mesh |
0.071mm wire dia.x0.04mm
wire dia. |
AISI 304/316 |
200mesh x 1800mesh |
0.05mm wire dia.x0.032mm
wire dia. |
AISI 304/316 |
Stainless Steel Woven Wire Mesh,
Twill Weave
Mesh |
Wire
Dia.(mm) |
Opening(mm) |
Material(AISI) |
250mesh |
wire
dia.0.040mm |
0.063 |
304
or 316 |
300mesh |
wire
dia.0.040mm |
0.044 |
304
or 316 |
325mesh |
wire
dia.0.035mm |
0.043 |
304
or 316 |
350mesh |
wire
dia.0.030mm |
0.042 |
304
or 316 |
400mesh |
wire
dia.0.030mm |
0.033 |
304
or 316 |
